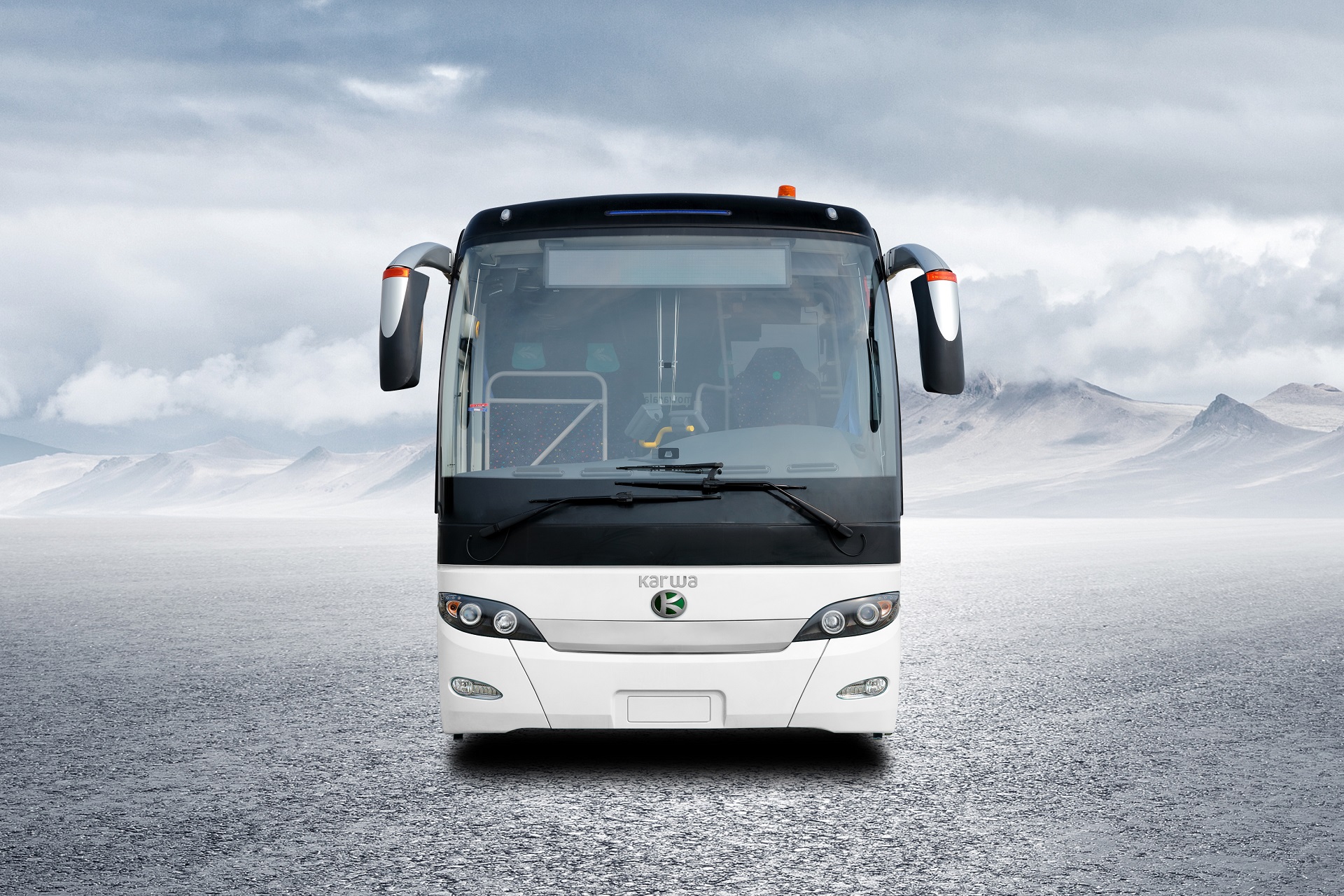

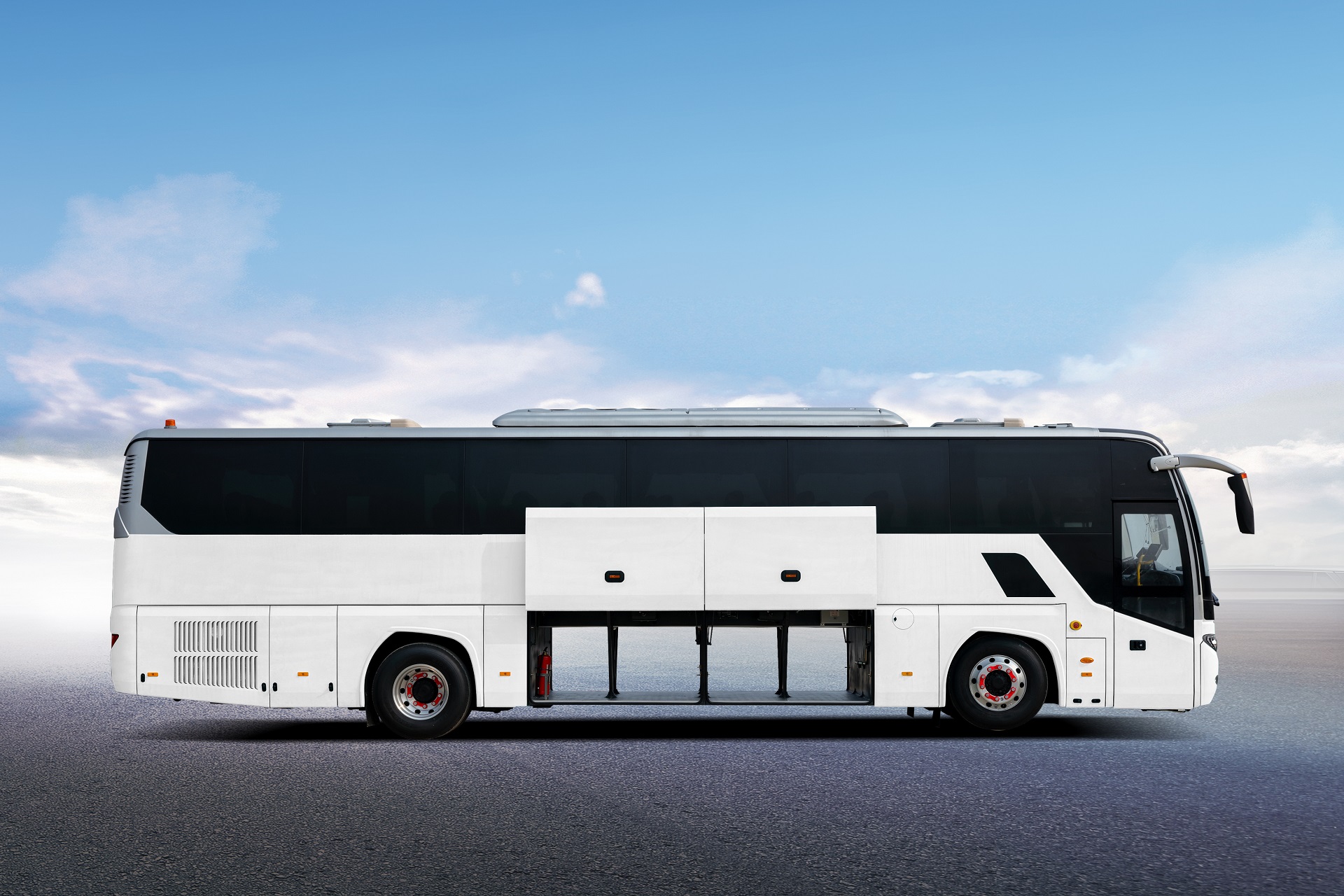

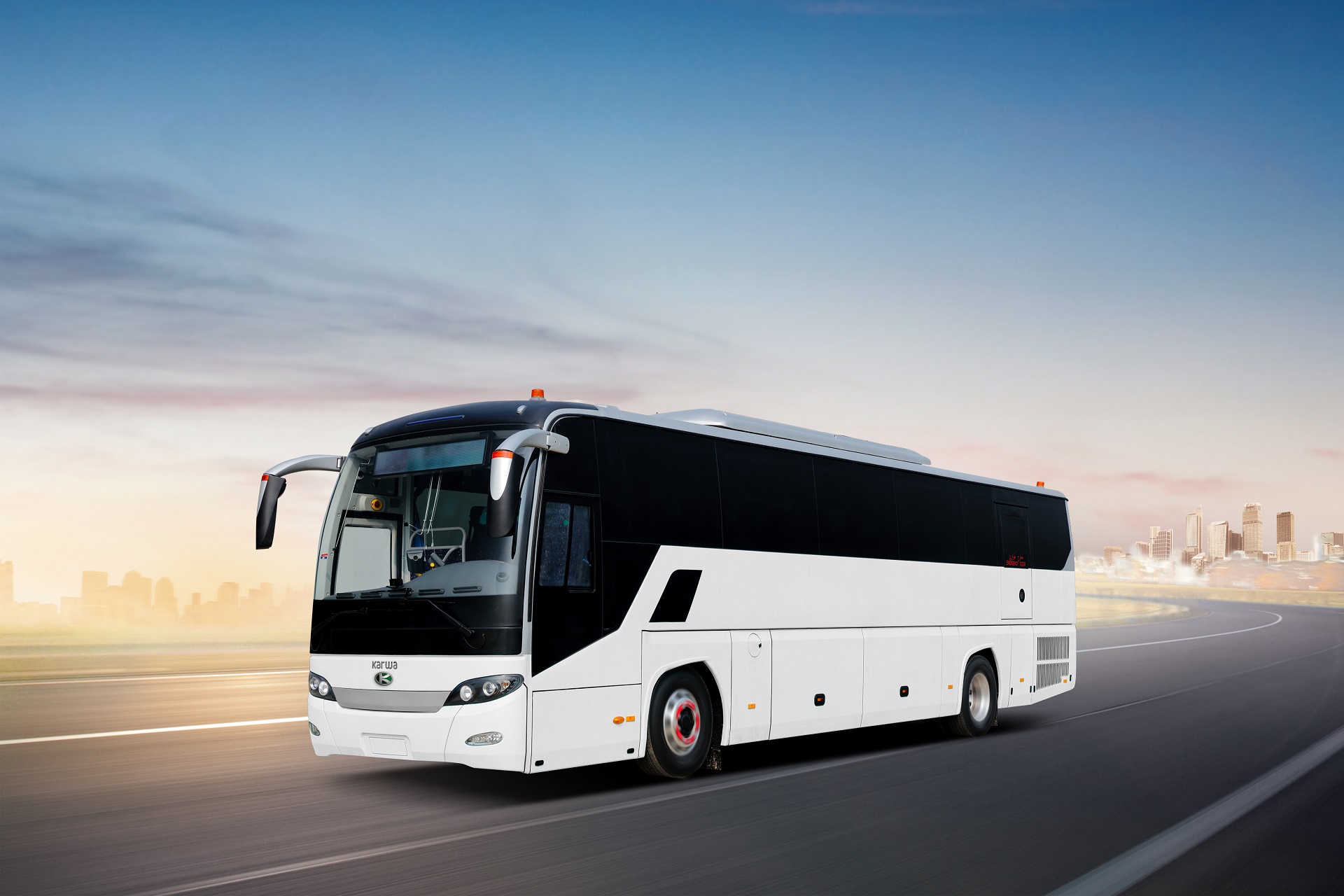

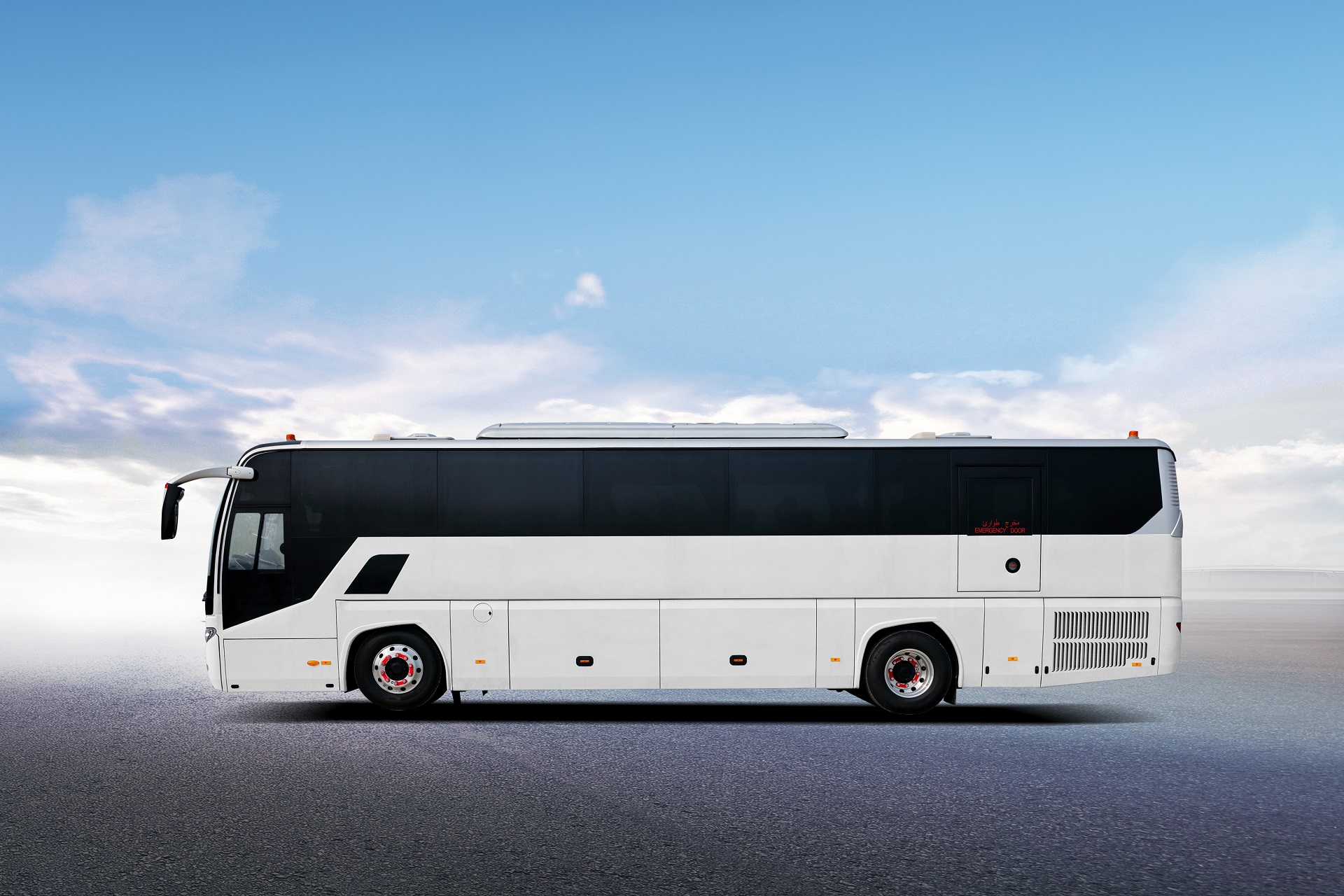

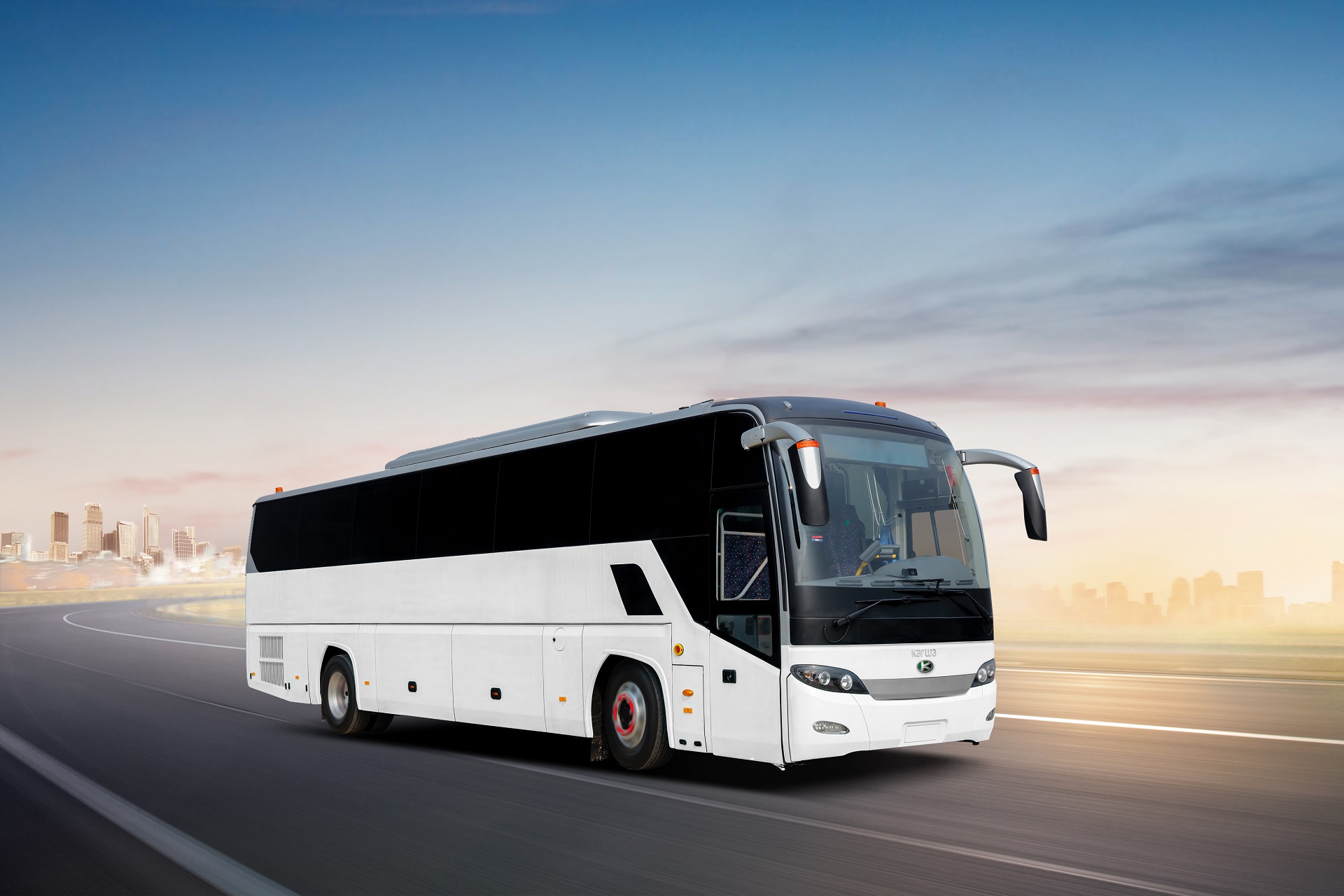

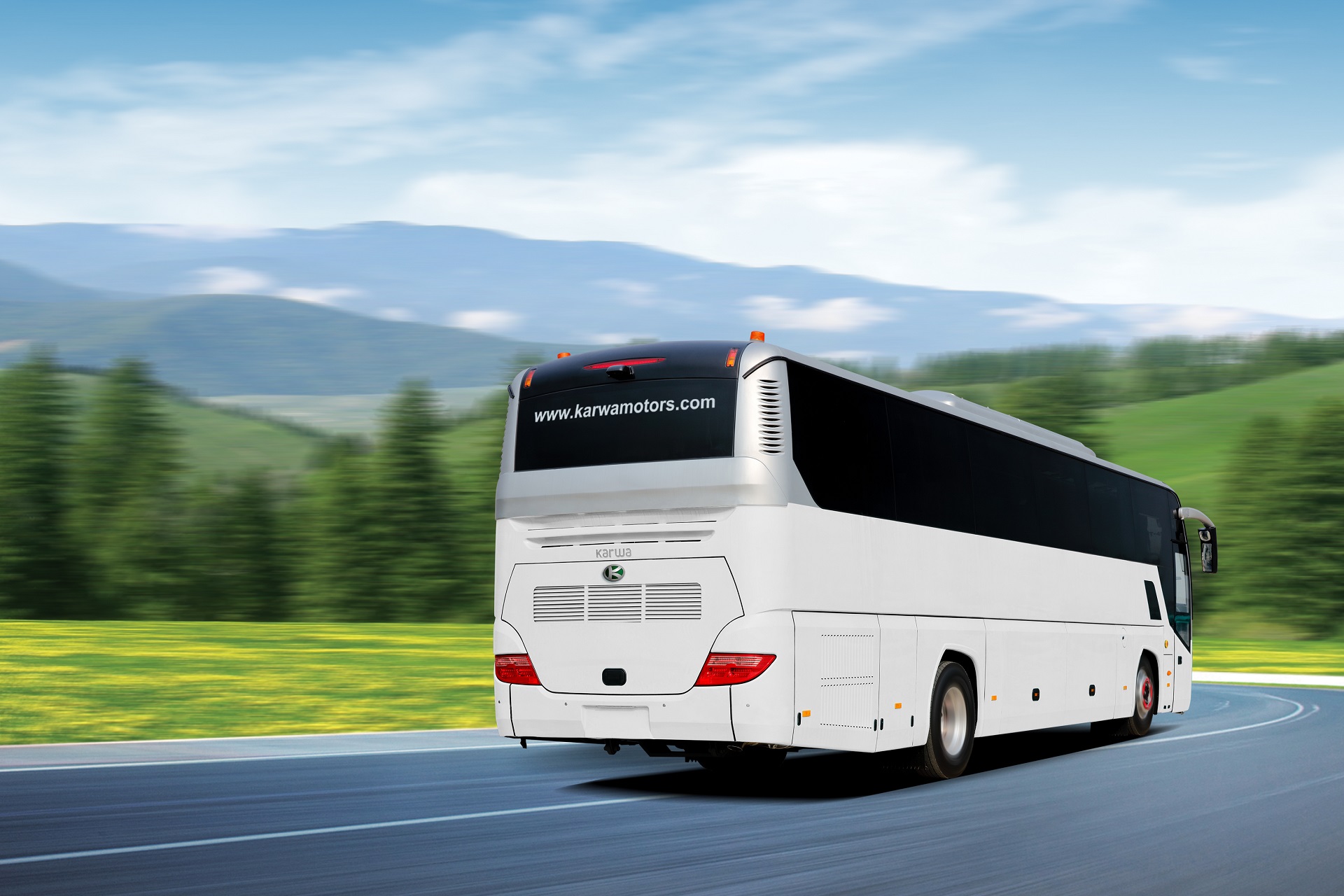

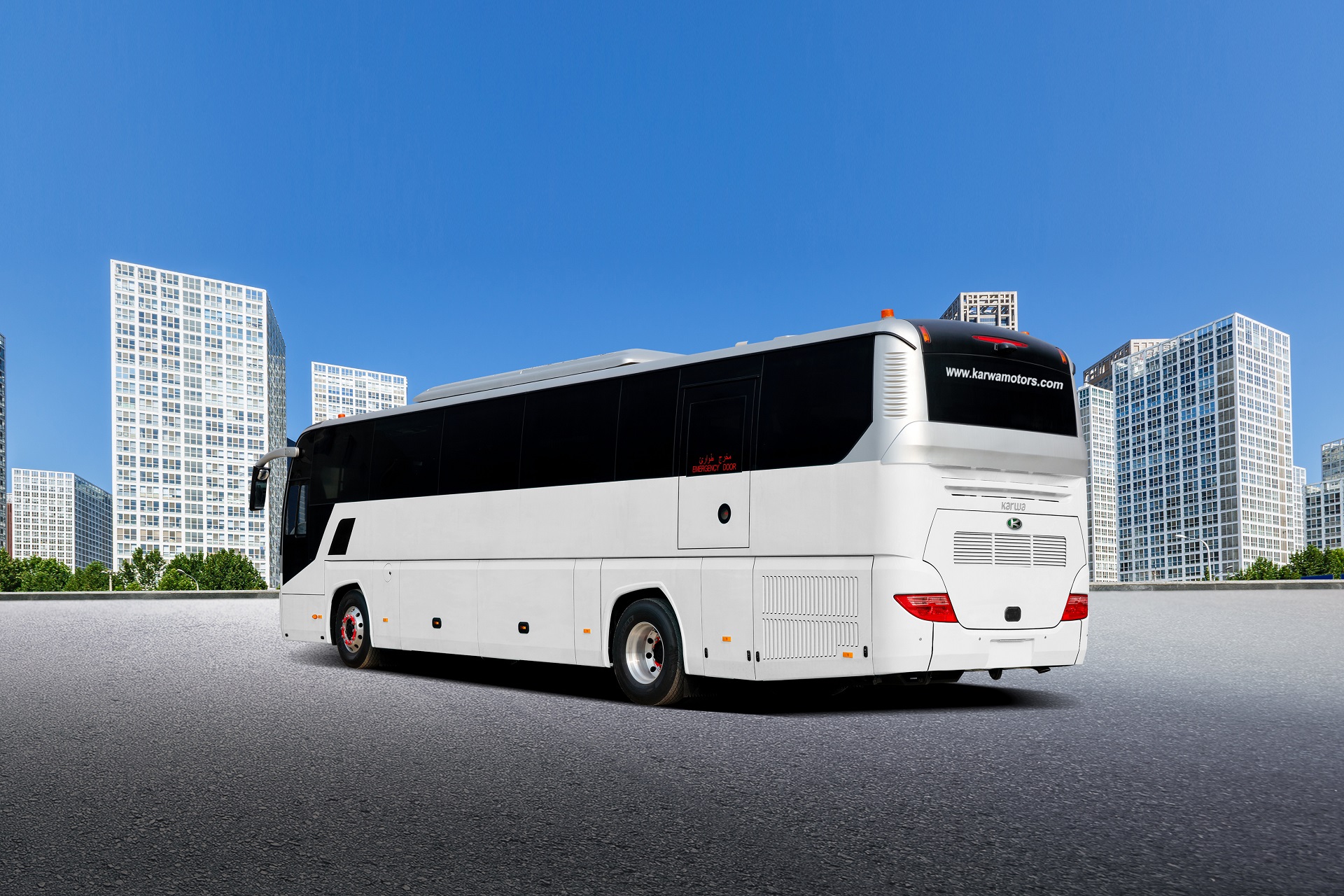

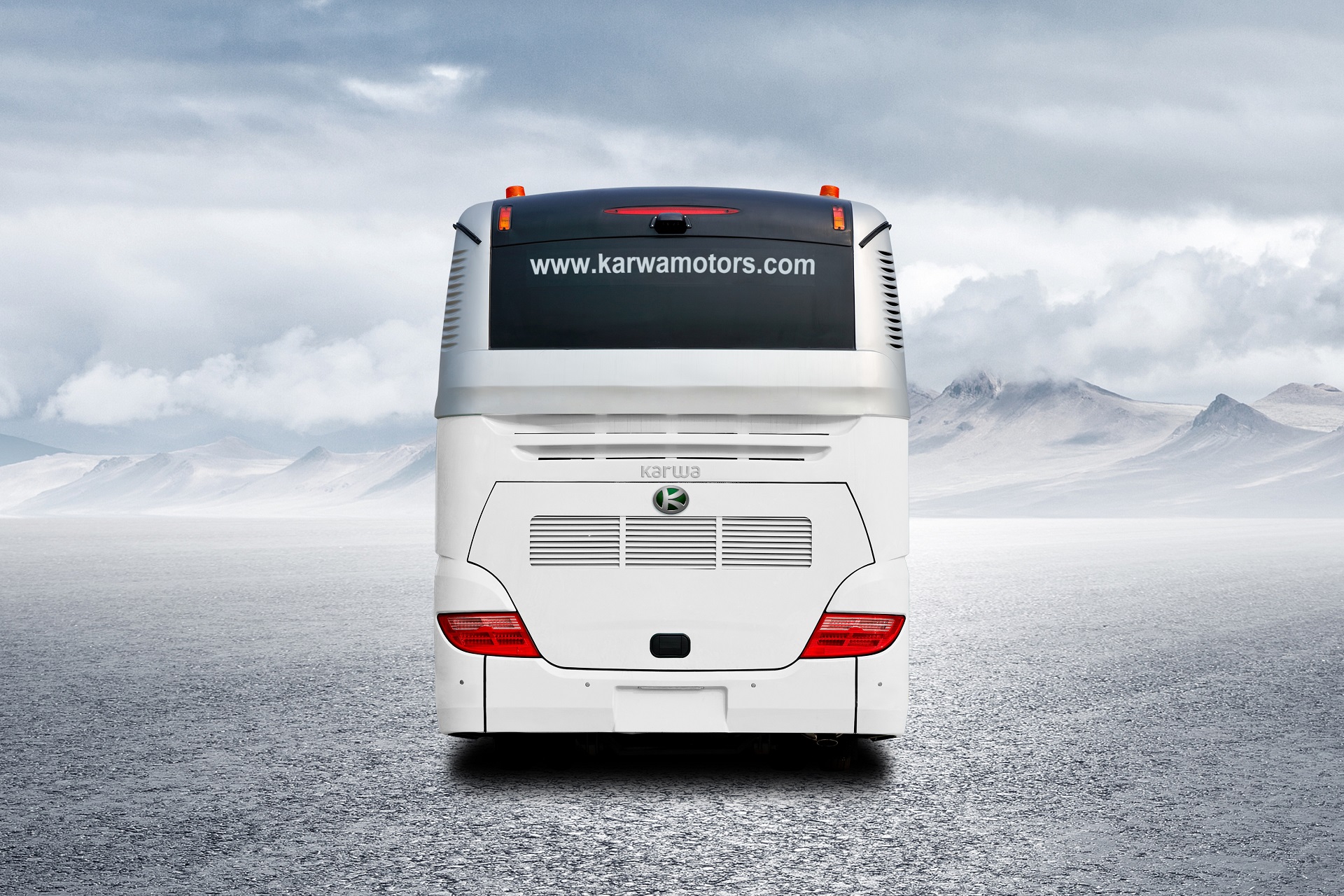

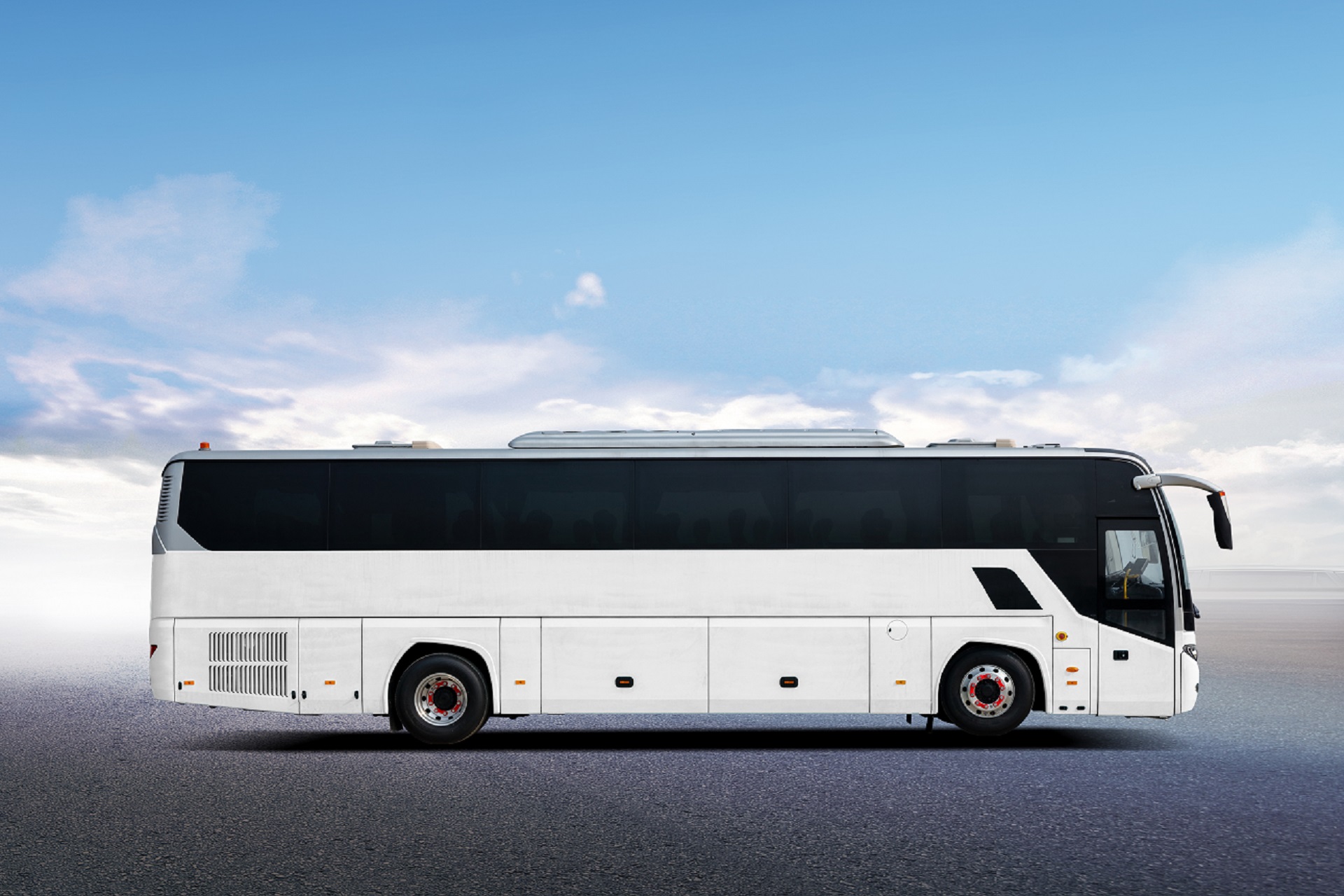

Coach Bus
Seamless Journeys
Home
Products
Coach Bus
Dimensions
Length (mm)
12000
Width(mm)
2500
Height (mm)
3610
Wheelbase (mm)
6150
Gross Vehicle Weight (kg)
18000
Curb Weight (kg)
13550
Seats
51+1
Engine
Power
340 HP, 6 cylinder
Displacement (L)
8.9
Torque (Nm)
1425@1100-1400rpm
Transmission
Transmission
Automatic gearbox with retarder
Chassis
Suspension
Air suspension
Front axle
front disc axle
Rear Axle
Rear disc axle; Axle ratio: 5.22
Braking system
Dual-circuit service fully dry braking system WABCO EBS
Steering
Power steering
Fuel Tank capacity (L)
390
A/C
32,000 Kcal/hr
Battery (V)
24
Doors
Front single
Audio & video system
AM/FM radio LCD with USB player
General
Dimension (LxWxH) (mm)
12000 × 2500 × 3610
Gross Weight (kgs)
18000
Speed(km/h)
120
Turning radius
<22
Wheel base
6000
Seats
49+1+1 with toilet / 51+1+1 without toilet
No. of doors
2
Audio & video system
FM, LCD with USB player
Engine, Driveline and Chassis
Engine
340 HP, 6 cylinder, 8.9 L, 1425 Nm @ 1100~1400 rpm
Transmission
Automatic transmission
Axle
Front Rigid and Rear Hypoid
Suspension system
Air Suspension
Brake system
Front and rear disc brakes, With EBS
Steering System
Power steering
Air conditioner (A/C)
Roof mounted, brushless fan, Dependent, with 32,000 Kcal/hr
Fuel tank
390 liters with anti-siphon fuel filling system
Electrical System
CAN System with OBD II diagnostic
Safety
Engine Compartment
Automatic Fire Suppression System
Smog Detection system
Battery Compartment
Smog Detection system
Wheels
Wheel Temperature label
Wheel Nut Lug
Tire Pressure monitoring system (TPMS)
Others
Neutral when bus stops
CCTV
Emergency escape roof hatch and door
Optional
Vehicle Tracking
Telematics
Information system
Passenger Announcement system with GPS
Multi-color LED destination board
Others
Three Beacon lamps on the roof top
Micro switch for opening door
